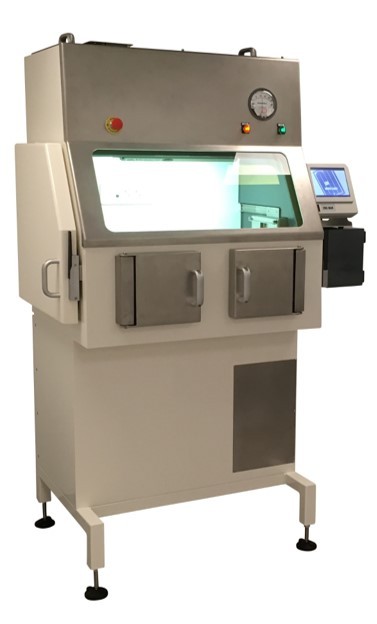

Hot Cell for 68Ga

Our Isolator has been designed for the use of PET peptides and radiometals. The 5-cm lead shielding is calculated to provide the right protection with commonly used gamma irradiations and to give also the optimal protection to beta irradiation, a 15mm methacrylate shielding was added.

The internal methacrylate isolation door allows a wide view of the working area and easy mounting of cassettes on the synthesizers under a Class A environment.

The Class B Ga-68 Generator pre-chamber is connected to the Class A working area through a multi-diameter sealing flange, allowing to connect up to 4 pipes. The chamber was designed to take up to 2 generators.

The Class A working area and Class B pre-chambers have a negative pressure with a higher depression in Class B to preserve product sterility and the environment radioprotection.

A  touch-screen control panel allows you to view and to control all isolator parameters and functions, including depressions, radioactivity level, dose calibrator vial/syringe lift, side pre-chamber door, automatic shelf between pre-chamber and working area.

Analog differential pressure indicators offer additional visualization for quick check of depressions.

External pedal controls have been added for easy and quick operation with full hands.
